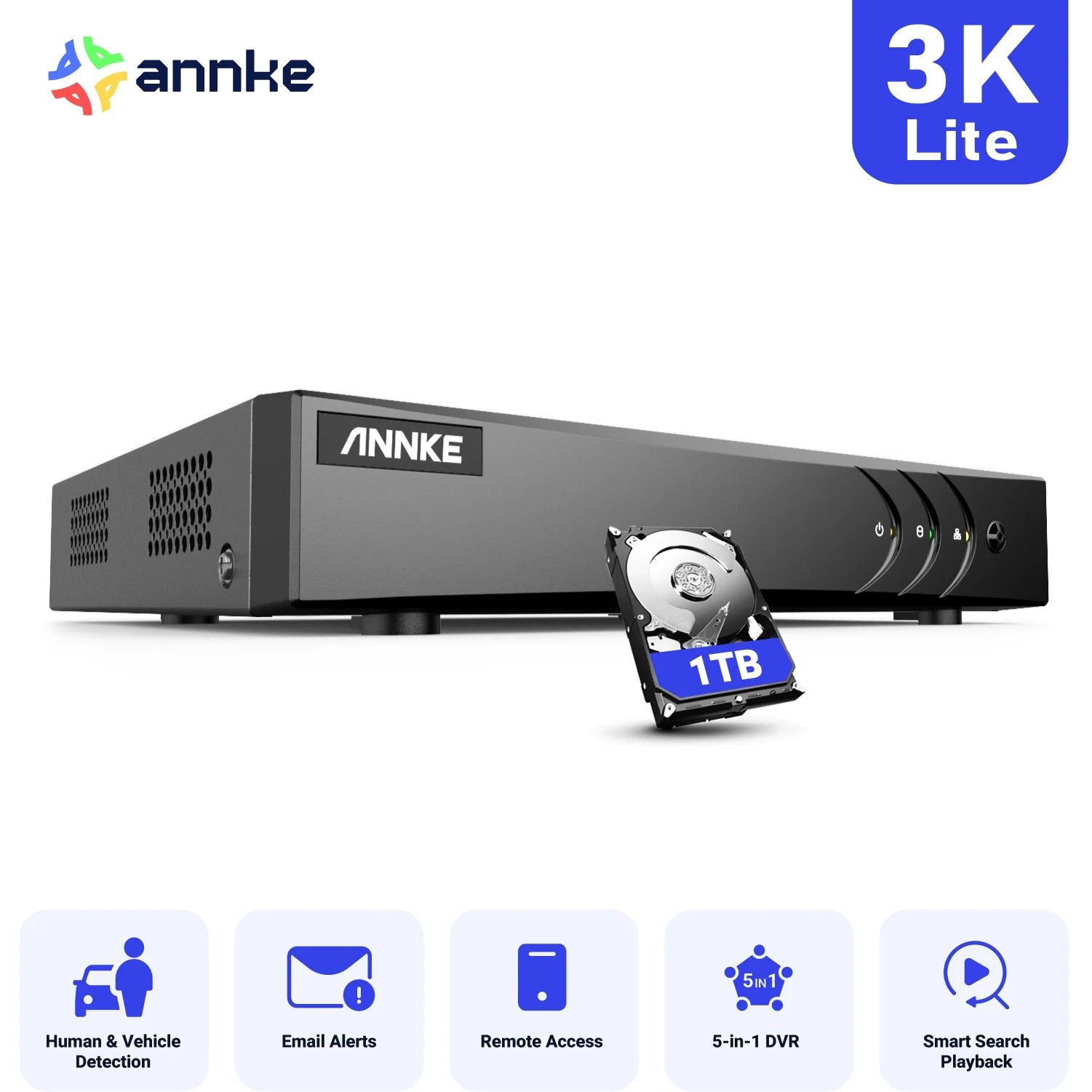

ANNKE 3K 5MP Lite 8 Channel DVR 5in1 TVI AHD CVI CVBS IPC Recorder

ANNKE 3K 5MP Lite 8 Channel DVR 5in1 TVI AHD CVI CVBS IPC Recorder

$216.99 USD
$0.00 USD $216.99 USD
Sale Sold out
Shipping calculated at checkout.
Build-in HDD
Ships From

Upgrade your security with crystal 3K-ready surveillance from an 8-channel DVR that blends 5-in-1 analog and IP inputs for flexible, future-ready coverage.

  • 5-in-1 compatibility for TVI/AHD/CVI/CVBS/IPC, with 8 analog inputs plus 2 IP inputs (up to 12 channels in IP-enhanced mode) so you can mix cameras without rewiring.
  • Video is encoded with H.264+/H.264/H.265/H.265 Pro+ and outputs through HDMI and VGA up to 1080P; you can install 1 SATA HDD up to 10TB.
  • Smart motion detection 2.0 uses deep learning to classify humans and vehicles across analog channels, reducing false alarms and speeding your searches.
  • Remote monitoring on iPhone, iPad, and Android with up to 64 connections; audio input via coax (8 channels) and RCA; DC12V power; compact 260×222×45 mm body.

DVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265 Pro+

Video Input

8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)

Video Output

HDMI and VGA Up to 1080P

Audio Input

1-ch RCA,8-ch via coaxial cable

Audio Output

1-ch RCA

Supported Camera Types

Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20F)4MP, 1080p, 720P;
Support CVI Input: 5MP(20F),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P

Analog HD Playback Resolution

3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps

IPC Playback Resolution

Up to 6MP

Max Playback Channel

8-ch

Network Protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Total Bandwidth

96Mbps

Remote Connection

64

Motion Detection 2.0

All analog channels support human and vehicle detection to reduce false alarm

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 10TB capacity

External Interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB

USB2.0x2

General

Operating Power

DC12V,≤ 12W (without HDD)

Working Temperature

-14 °F – 131 °F /-10 °C – 55 °C

Dimensions(W x H x D)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk)

≤ 1 kg (2.2 lb)(without HDD)
